Aluminum Soild Raised Access Flooring

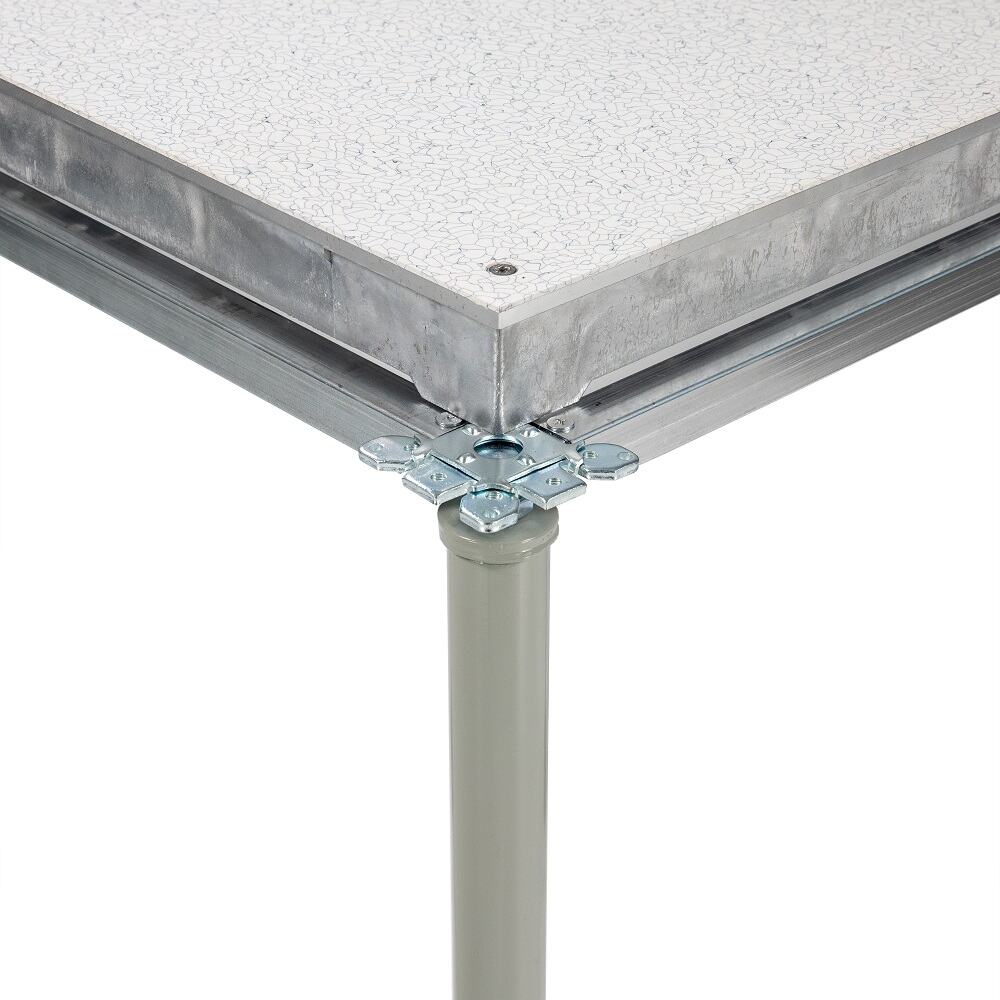

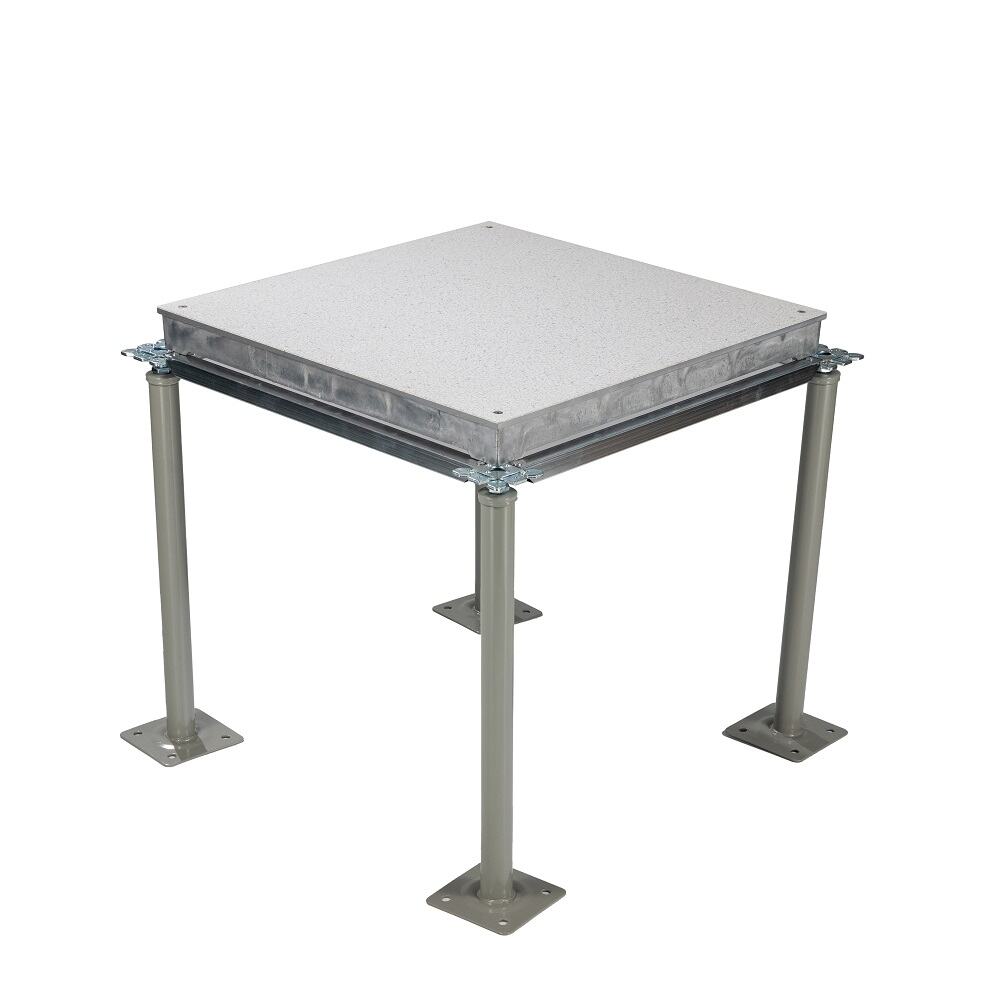

Aluminum solid raised access flooring is made of aluminum alloy gold ingot (ADC12), which is precision casted, integrated with high-load structure design, and then processed into various series of floors.The covering can use HPL, PVC, conductive electrostatic brick or others.Access floor system is a high stability structure with aluminum alloy anti-static floor panel, vertical support base, transverse pull stringer, and sound-absorbing gasket. In addition to preventing the generation of static electricity and bearing loads, the raised fioor can accommodate the configuration of cables, air conditioners and pipes in the middle floor of the height floor, and can freely open the floor and carry out decoration.
- Overview
- Recommended Products
Product Description

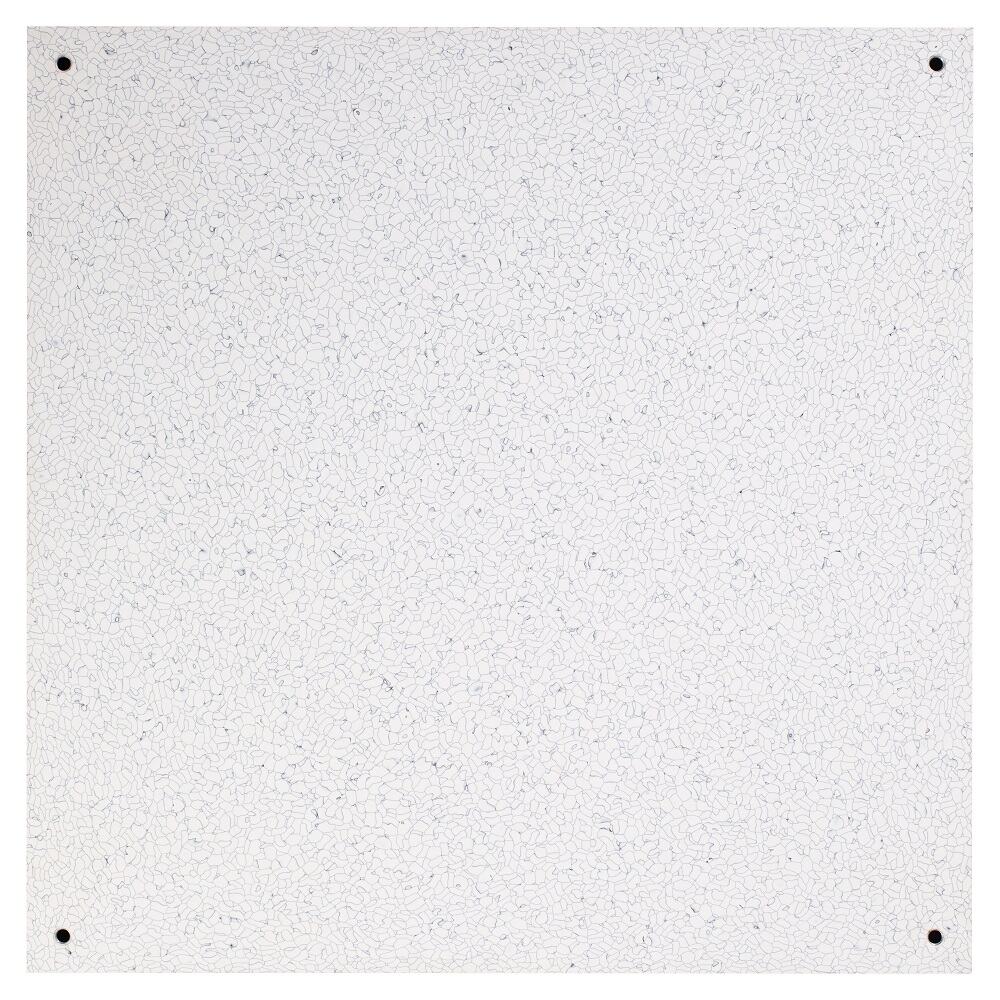

Crafted from high-grade ADC12 aluminum alloy via precision die-casting, our Aluminum Solid Raised Access Flooring delivers exceptional strength (300-2000kgf Concentrated Load, and durability (≥20-year lifespan). The thickness is 55mm, size is 600×600mm, and surfaces can choose HPL / PVC, it adapts to diverse needs. Boasting conductive 10^4-10^6Ω or static dissipative 10^6-10^9Ω, antibacterial rate, and corrosion resistance, it meets ISO standards for cleanrooms, data centers, labs, and pharmaceutical plants. The raised floor structure forms an underfloor space for organized routing of power cables, data wiring, HVAC systems, and piping, featuring snap-fit assembly, improving maintenance efficiency and space utilization.
Performance Parameter
|
Project Detail |
Finish |
System Resistance |
Material |
Concentrated Load |
Ultimate Load |
Uniform Load |
| Deflection ≤ 2.0mm | Deflection≤ 1.0mm | |||||
| HLS 300 | HPL / PVC |
Conductive 10^4 - 10^6Ω or Static Dissipative 10^6 - 10^9Ω |
Die-cast Aluminum |
300kgf/6.45c㎡ | 600kgf/6.45c㎡ | 600kgf/6.45㎡ |
| HLS 500 | 500kgf/6.45c㎡ | 1000kgf/6.45c㎡ | 1000kgf/6.45㎡ | |||
| HLS 700 | 700kgf/6.45c㎡ | 1400kgf/6.45c㎡ | 1400kgf/6.45㎡ | |||
| HLS 1000 | 1000kgf/6.45c㎡ | 2000kgf/6.45c㎡ | 2000kgf/6.45㎡ | |||
| HLS 1200 | 1200kgf/6.45c㎡ | 2400kgf/6.45c㎡ | 2400kgf/6.45㎡ | |||
| HLS 1500 | 1500kgf/6.45c㎡ | 3000kgf/6.45c㎡ | 3000kgf/6.45㎡ | |||
| HLS 2000 | 2000kgf/6.45c㎡ | 4000kgf/6.45c㎡ | 4000kgf/6.45㎡ |
Product Features
• Floor component standard, high precision, easy construction and good interchangeability;
• High load structure design, Finish floor height can be adjusted;
• PVC covering is high wear resistance which effectivety solve the fracture, warping and other problems;
• Customer can choose panel color, material and function according to the requirements;
• Moisture proof, Rust - proof, fire - proof, durable, recycle long - temn used fLoor material.
Application
All kinds of factories and workshops with high requirements for indoor purification, such as:
• Electronics
• Chip manufacturing
• Semiconductor
• Pharmaceutical industries
Advantages
• High Load Capacity & Structural Strength

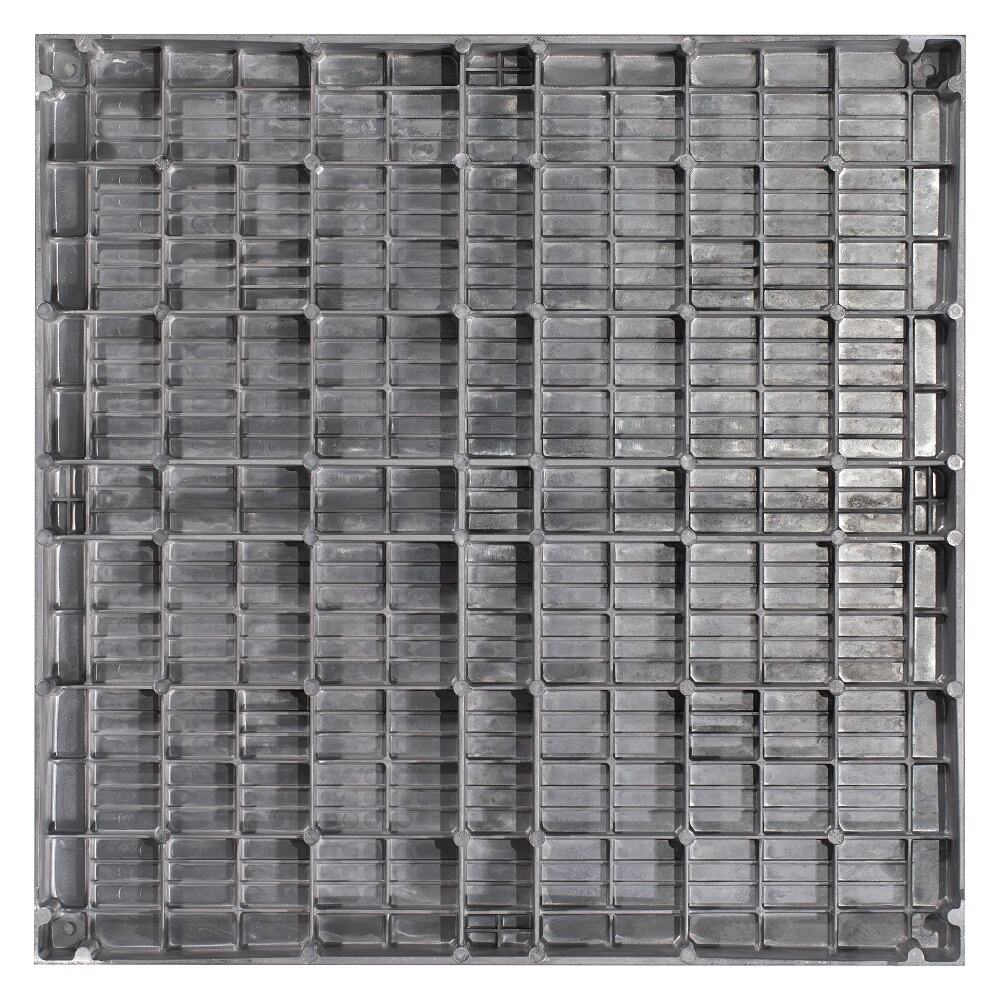

Manufactured using precision die-casting technology with high-quality aluminum alloy (ADC12), the panels offer excellent mechanical strength and dimensional stability. The integrated structure ensures high load-bearing capacity, making it suitable for heavy equipment environments such as semiconductor factories, laboratories, and data centers.
• Excellent Cleanliness & Low Particle Generation
The solid aluminum panel features a smooth, non-porous surface that minimizes dust accumulation and particle generation. This characteristic helps maintain strict cleanliness standards, making it ideal for cleanrooms, pharmaceutical facilities, and precision manufacturing environments.
• Corrosion Resistance & Long Service Life
Aluminum naturally provides strong resistance to corrosion, moisture, and chemical exposure. Compared with traditional steel or wood core floors, aluminum raised flooring maintains stable performance even in humid or chemically sensitive environments, ensuring a longer service life.
• Flexible Underfloor Space Management
The raised floor system creates an accessible plenum for power cables, data wiring, air conditioning ducts, and pipelines. Panels can be easily removed for maintenance, allowing efficient upgrades, repairs, and flexible infrastructure adjustments.
• Lightweight, Recyclable & Sustainable
Aluminum panels are significantly lighter than traditional flooring materials while maintaining high strength. In addition, aluminum is 100% recyclable, supporting environmentally friendly building practices and reducing long-term environmental impact.
