Anti-Static All Steel Access Flooring – Ceramic Finish

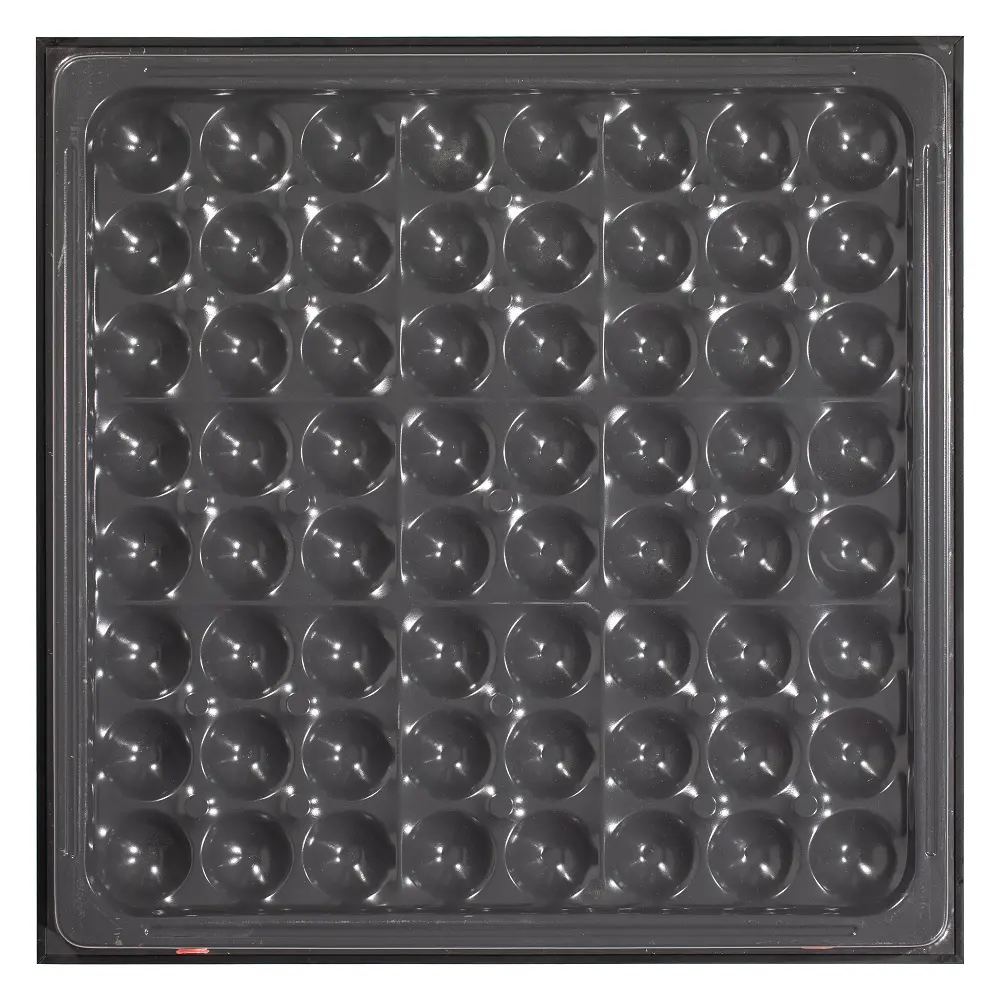

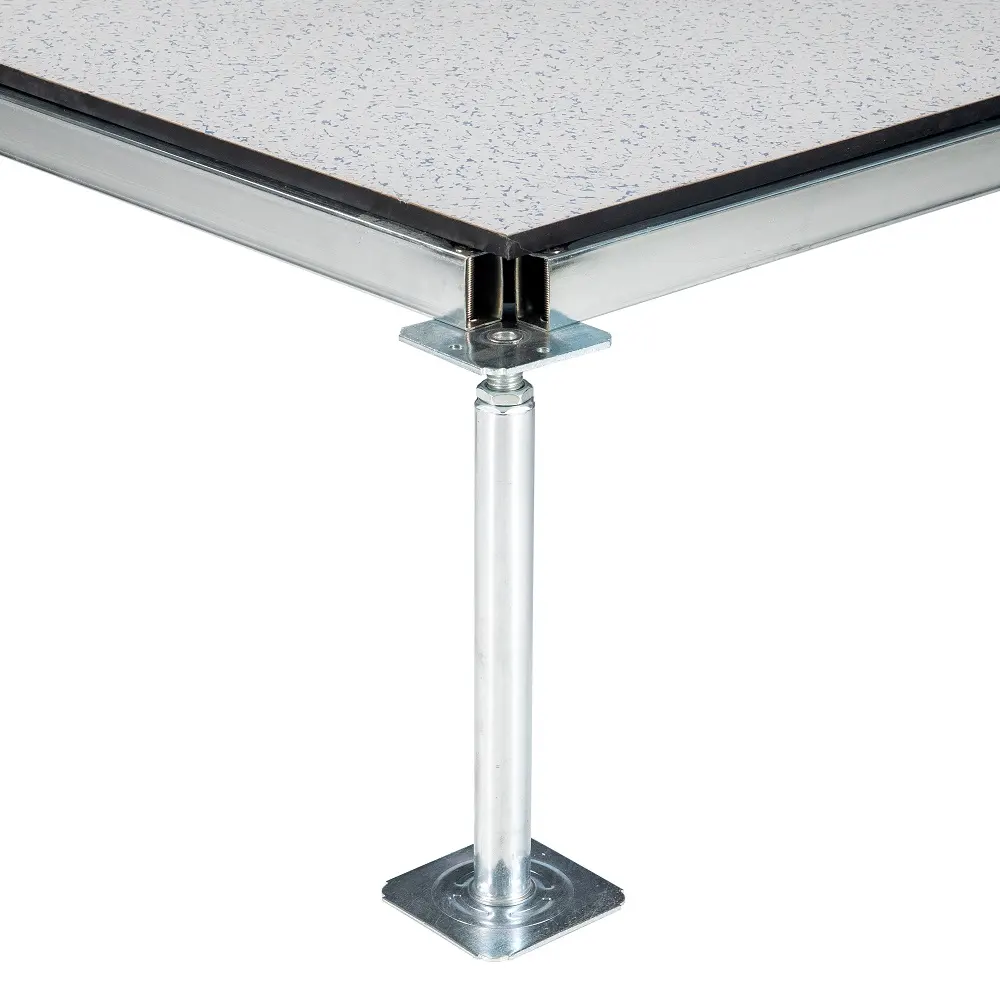

Ceramic covering steel anti-static access floors use ST14 tensile plate, and surface is hard steel sheet (SPCC), spot welding form all steel shell structure, after stretching out and phosphating coating processing, inner filled with foamed cement, stick ceramic covering on top of floor panel. The panels sides encased with conductive plating, The pedestals is pressed with steel plate, the screw height is adjuslable.Use side controls as stringers.
- Overview
- Recommended Products
Product Description

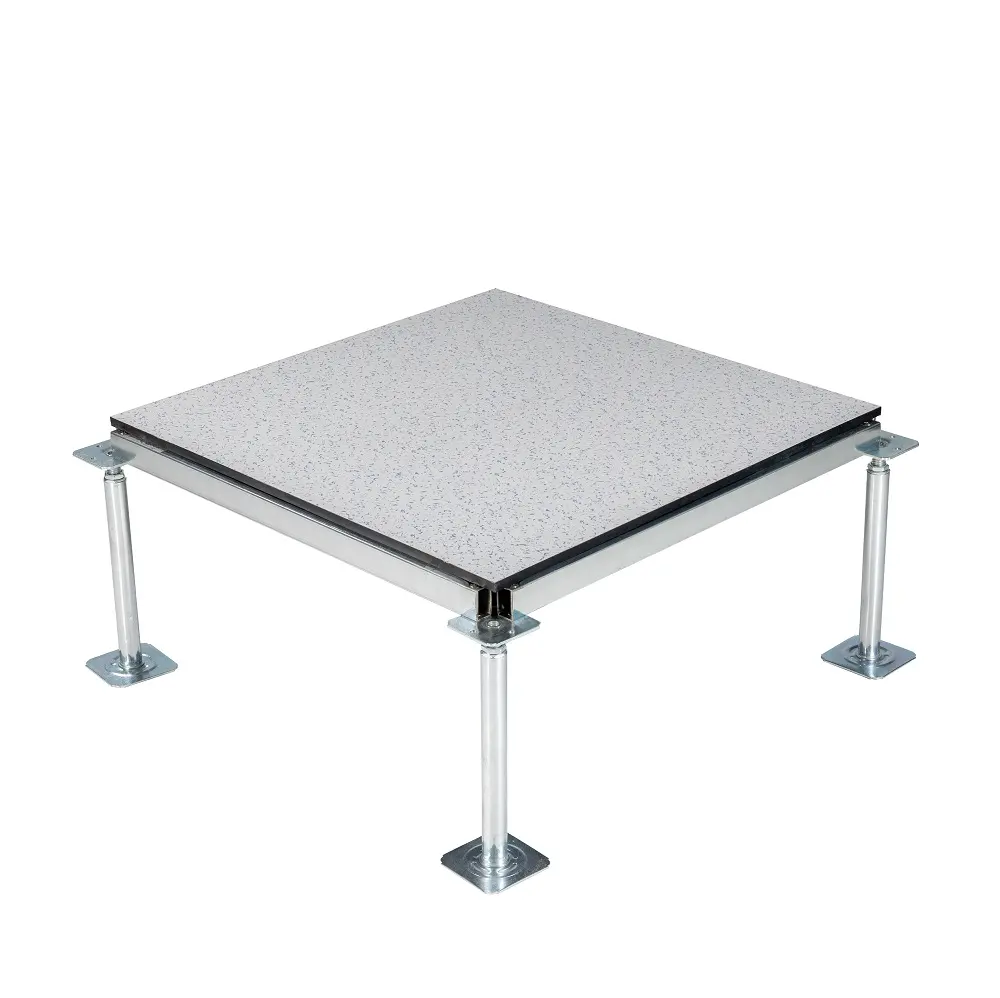

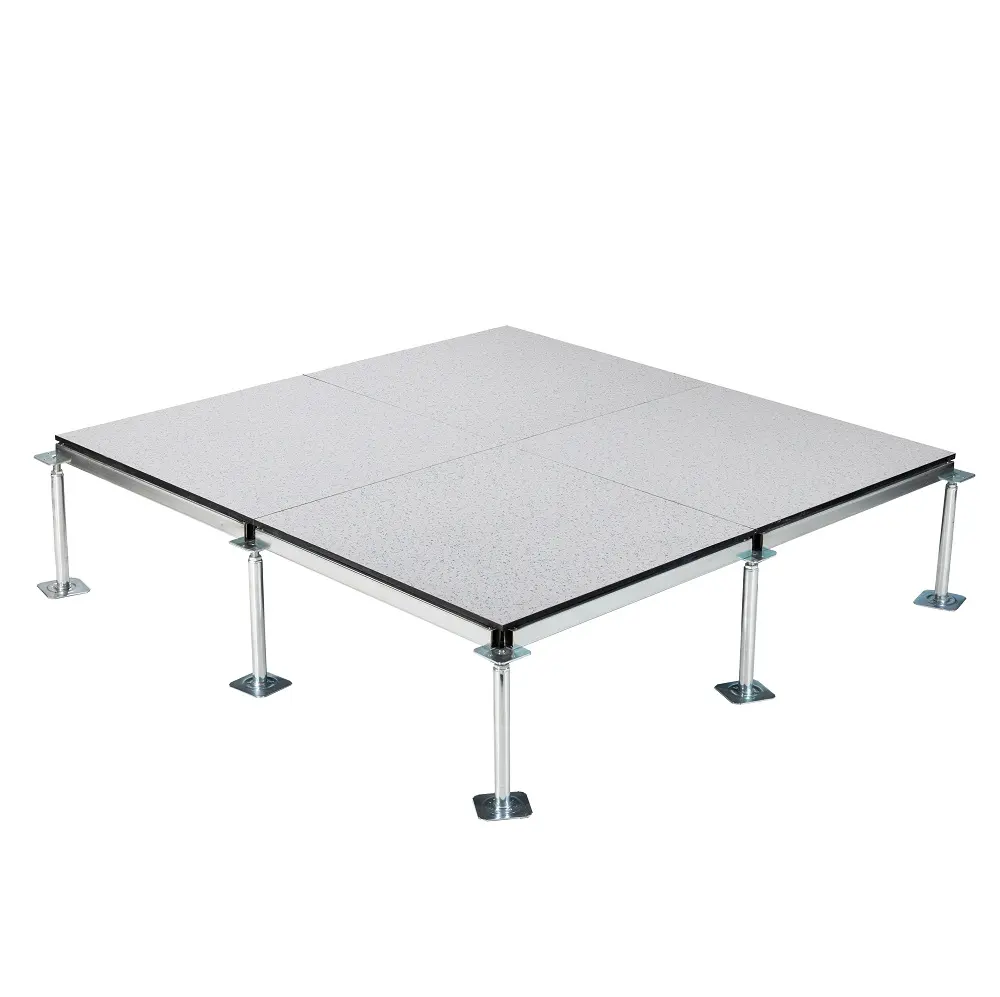

Anti-Static Raised Access Flooring with Ceramic Finish is built with a high-strength steel core and a conductive ceramic surface, the system safely dissipates static electricity while helping protect servers, network devices, and precision electronics from ESD risks.

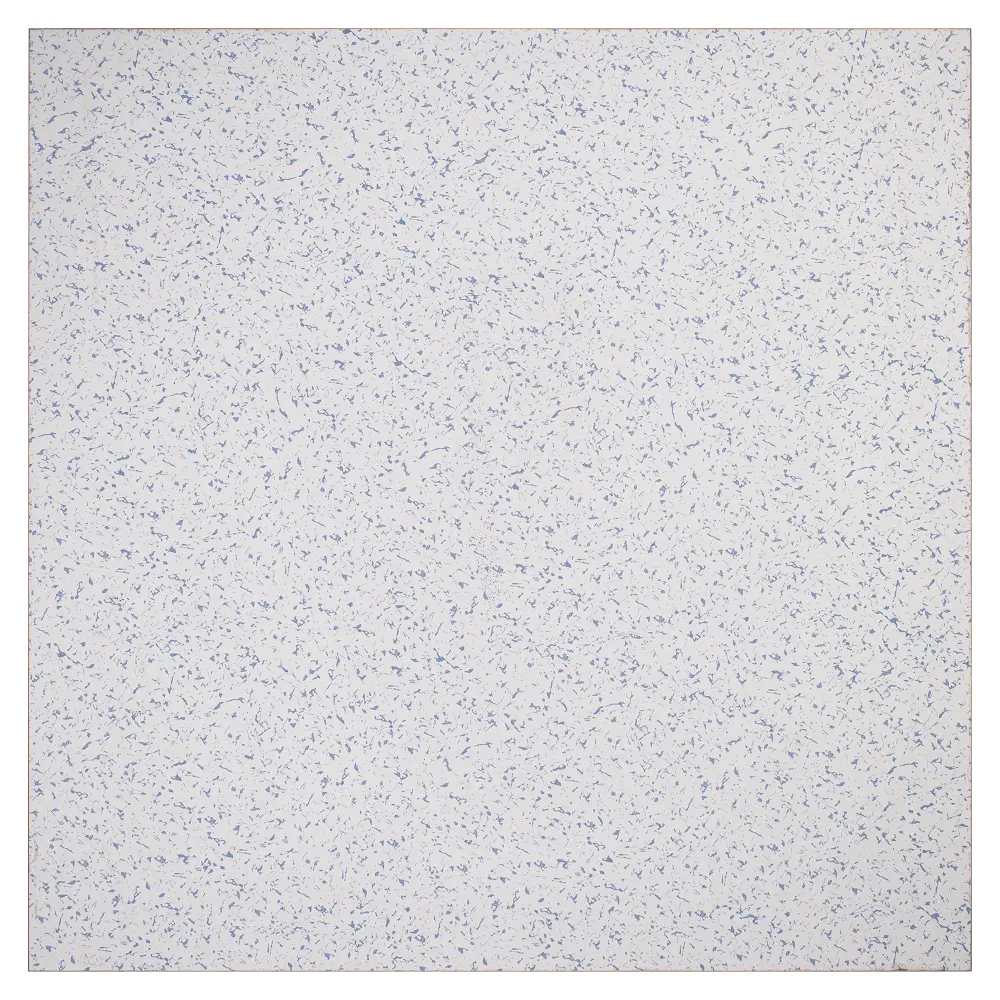

The ceramic finish offers excellent wear and scratch resistance, making it suitable for high-traffic areas. Its smooth, non-porous surface is easy to clean and maintain, supporting the cleanliness and stability required in mission-critical facilities. The modular raised floor structure allows efficient cable management and supports proper airflow.
The panels are manufactured using non-combustible materials, and key performance properties have been verified through third-party testing conducted by Intertek, ensuring reliable quality and long-term durability.
Performance Parameter
| International Standards |
Uniform Load | Concentrated Load |
Rolling Load | Rolling Load | Impact Load | Ultimate Load |
| (10 PASS) | (10 KPAAASS) | |||||
| FS 450 | 10.00 KN/㎡ | 204 KG | 1.78 KN | 1.56 KN | 75LB/34 KG | 6.89 KN |
| FS 662 | 14.71 KN/㎡ | 300 KG | 2.45 KN | 2.00 KN | 100LB/45 KG | 8.85 KN |
| FS 800 | 17.78 KN/㎡ | 363 KG | 2.94 KN | 2.45 KN | 100LB/45 KG | 11.25 KN |
| FS 1000 | 22.22 KN/㎡ | 454 KG | 3.56 KN | 2.67 KN | 150LB/68 KG | 14.50 KN |
| FS 1250 | 27.78 KN/㎡ | 567 KG | 4.45 KN | 3.56 KN | 150LB/68 KG | 18.36 KN |
| FS 1500 | 33.34 KN/㎡ | 680 KG | 5.56 KN | 4.45 KN | 175LB/68 KG | 22.17 KN |
Product Features
• Made of all-steel, high mechanical strength, strong bearing capacity, good fire perfommance
• Surface electrostatic plastic, soft light, wear-resistant, anti-corrosion, no cracking
• Good wear resistance and anti-static performance, anti-pollution, easy to clean, decorative, fire -proof
• Rich design and color, high dimensional accuracy, good leveling, wear resistance, long life, not dust, easy to clean maintenance, no need wax
• Inherited the ceramic wear resistance and high bearing capacity of steel plate, not easy to deformation
• The ceramic tile completely avoid the problem of warpage
Application
• Computer room
• Mobile communication engine room
• Precision instrument manufacturing workshop
• Hospital operating room
Advantages
• Fireproof & Non-Combustible: Made of cold-rolled steel sheet and cement filling, the panels are non-combustible, fire-resistant, and do not release toxic gases, ensuring high safety in critical environments.
• High Mechanical Strength: Precision-formed steel structure provides excellent strength and stability, meeting international standards and supporting heavy static and dynamic loads.
• Sound Insulation: The composite steel-and-cement structure reduces vibration and impact noise, improving acoustic performance in commercial and technical spaces.
• Excellent Load Capacity: Uniform load distribution ensures edge load capacity equal to center load, preventing warping and maintaining long-term flatness.
• Durable & Eco-Friendly: Steel components are recyclable and designed for long service life, reducing material waste and replacement frequency.
• Moisture & Corrosion Resistant: Steel sheet and protective coatings provide reliable resistance to moisture, humidity, and corrosion.
