Encapsulated Calcium Sulfate Access Flooring

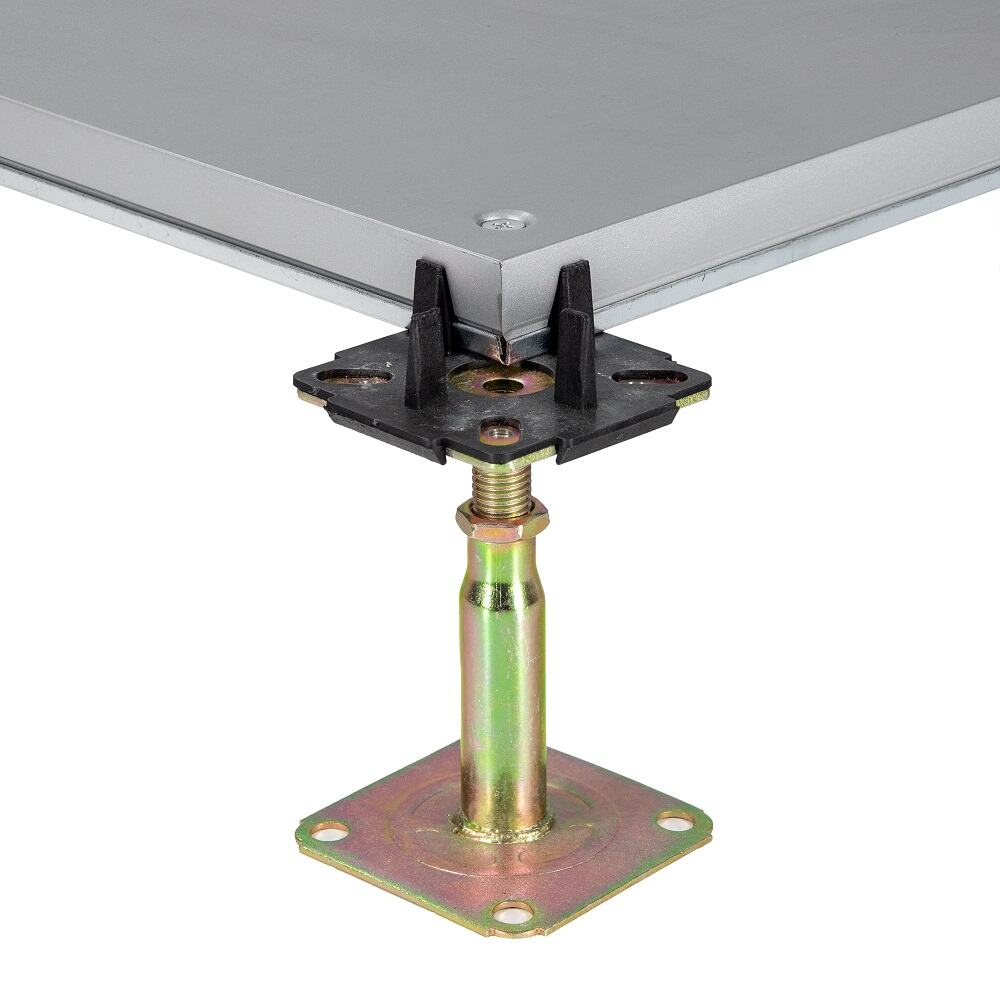

Calcium sulphate network access floor adopts high quality calcium sulphate base material, four-corner supported structure and four comers with or without corner lock hole. The top and bottom surfaces reinforced with galvanized steel sheets, thickness ≥0.2 mm each. All four sides fully wrapped with galvanized steel sheets (six-side sealing). The bracket is molded, and the upper support plate is provided with cushioning and positioning pad for noise reduction. Carpet, PVC or other materials can be laid on the surface.
- Overview
- Recommended Products
Product Description
Encapsulated calcium sulfate raised access flooring is a practical solution for modern commercial buildings that require durability, safety, and easy underfloor access.
The modular panel design allows for quick installation as well as easy removal and replacement, supporting efficient maintenance and future upgrades. This makes the flooring system well suited for offices, business centers, and other commercial spaces with evolving infrastructure needs.
With strong fire-resistant properties and effective sound insulation, encapsulated calcium sulfate flooring helps improve both safety and acoustic comfort.
Performance Parameter
| International Standards |
Uniform Load |
Concentrated Load |
Rolling Load | Rolling Load | Impact Load |
Ultimate Load |
| (10 PASS) | (10 KPAAASS) | |||||
| FS 1000 | 22.22 KN/㎡ | 454 KG | 3.56 KN | 2.67 KN | 150LB/68 KG | 14.5 KN |
| FS 1250 | 27.78 KN/㎡ | 567 KG | 4.45 KN | 3.56 KN | 150LB/68 KG | 18.36 KN |
| FS 1500 | 33.34 KN/㎡ | 680 KG | 5.56 KN | 4.45 KN | 175LB/68 KG | 22.17 KN |
Product Features
• Galvanized steel plate encased calcium Suphate Panel, good sealing performance, waterproof;
• Calcium sulfate crystal, high overall strength, high temperature resistance, combustion resistance;
• Adjustable pedestal height, flexible assembly, large amount of wiring, good interchangeability;
• The surface can be paved with various veneers, beautifuland generous;
• The utility model has the advantages of high reuse rate,convenient disassembly, cost saving and long service life.
Application
• 5A office building
• Intelligent office space
Advantages
• Fireproof & Non-Combustible: Calcium sulfate panels are fire-resistant, heat-insulating, and non-combustible, effectively slowing fire spread without releasing harmful gases.
• High Mechanical Strength: Manufactured from high-strength gypsum powder, the panels offer excellent structural performance and meet international standards, including CE certification.
• Sound Insulation: The calcium sulfate and fiber composite structure reduces vibration and impact noise, and thus play a sound insulation effect.
• Excellent Load-Bearing Capacity: Edge load capacity is equal to center load capacity, preventing edge warping caused by uneven stress distribution.
• Eco-Friendly Materials: The calcium sulfate core is made from sustainable raw materials, is 100% recyclable, and achieves a recovery rate of up to 85%, with water-soluble adhesives.
• Water Resistant: The integrated panel structure provides reliable moisture resistance, preventing deformation, wrinkling, or delamination even under prolonged exposure to humidity.
